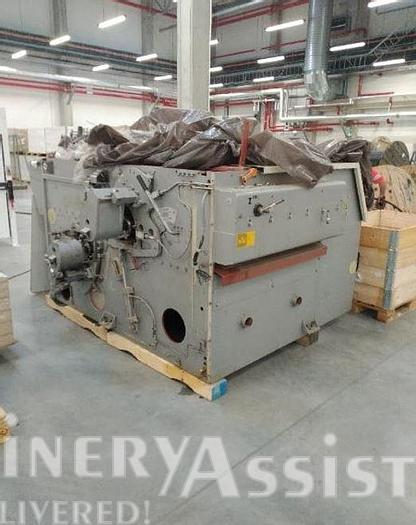

2011 Multi-saw Paul K34G-OU/1200

2011 Multi-saw Paul K34G-OU/1200

Contact us for price

orCall +370 650 27717

Description

1 EC Conformity Certificate: MULTIRIP CIRCULAR SAW, K34G-OU/1200

Nominal opening width 1 200

Max. workpiece thickness with insert table  85 | 80 | 70 | 60 mm

Tool shaft diameter 50 | 60 | 75 | 100 mm

Max. tool diameter 250 mm

Tool clamping width Opening width minus 110 mm

No. of hydr. Vertically adjustable top rollers  8 + 1

Powered bottom rollers 8

Idle bottom rollers 1

Roller drive Cardan

Feed speed frequency-controlled  15 – 50 m/min.

Feed motor power  2.2 kW

Max. working speed at max. saw blade dia.  64 m/sec

Min. workpiece length  from 460 mm

Max. driving power  90 kW (4 500 rpm)

Working height  800 mm

Length/height ~ 2 384 mm / 1 430 mm

Width ~ 2 640 mm

Width from 55 kW, ~  3 250 5 050 mm

Weight ~ 7 000 kg

MATERIAL SPECIFICATIONS

- Type of panels: Particle board/Chipboard - Condition of panels: Surface raw, sanded - Panel width: 400 - 1100 mm

- Panel thickness: 10 - 40 mm (with hold-down device) 40 - 50 mm (without hold-down device) (thickness variation +/- 0.3 mm)

- Panel length: 4200 - 6000 mm

- Application: Profiling/ripping from top and bottom, different strip widths within one setup, max. 8 strips per setup - Rip width: 20 - 150 mm

- Hogging of edgings: 5 mm on either side

- Groove depth: 6 mm

- Groove width: 11 mm

- Feed speed: 15 - 50 m/min.

- Working height: 800 mm

- Power supply: 400 V/50 Hz, 3 phase

Status: dismantled

Available immediately!

Specifications

ManufacturerPaul
ModelK34G-OU/1200
Year2011
ConditionUsed
