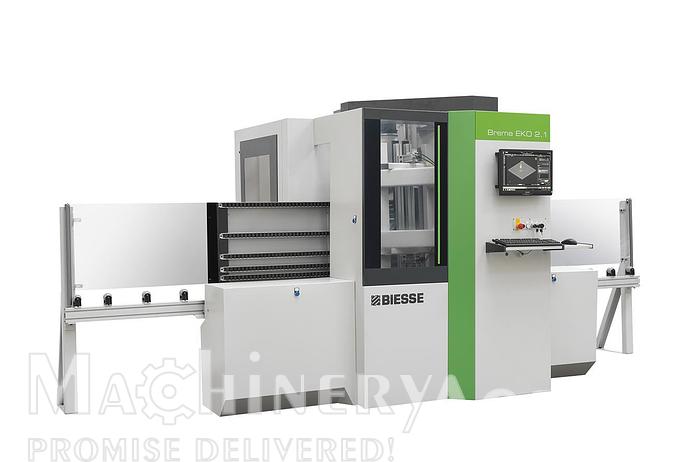

2021 BIESSE Brema EKO 2.1 Vertical panel machining centre

2021 BIESSE Brema EKO 2.1 Vertical panel machining centre

Contact us for price

orCall +370 650 27717

Description

Brema EKO 2.1 is the new compact and versatile vertical boring machine that supports the machining of different thickness and size formats within a reduced footprint. It is the ideal solution for “just in time” manufacturing for artisans, small companies and special components within large companies.

'X' working field 2600 mm (3200 mm with optional loadings supports) , 'Y' working field 900 mm.

Workable panels (dimensions min. - max.):

Length X min 200 - max 2600* mm

Height Y min 35 - max 900° mm

Thickness Z min 8 - max 60 mm

Max. workable panel weight 50 kg

Working field of the tools (dimensions min. max. - refer to tool axis)

Length (X)

Boring 0 - 2600* mm

Routing (with electro spindle) 0 - 2600^ mm

Grooving (with saw blade) in X direction 0 - 2600^ mm

Height (Y)

Boring 0 - 900 mm

Routing (with electro spindle) 0 - 920 Rf mm

Grooving (with saw blade) in X direction 25 - 900 mm

Thickness (Z)

Horizontal holes 0 - 35° Ru mm

Optional:

  • BH23 PLUS Self-selecting drilling unit with 14 vertical + 4 horizontal spindles + 1 grooving saw Ø 120 mm

The processing unit is composed of 14 vertical independent spindles, 4 horizontal independent spindles and 1 grooving saw unit diameter 120 mm.

The configuration of the operating unit is the following:

No. 14 vertical independent spindles positioned at 32 mm centre

distance, designed with grub-screw spindle coupling, of which:

No. 7 spindles aligned in 'X' direction

No. 7 spindles aligned in 'Y' direction

No. 4 horizontal independent spindles positioned in X and Y

directions, designed with grub-screw spindle coupling, of which:

No. 3 spindles positioned in 'X' direction (no. 2 units with double outlet)

No. 1 spindle positioned in 'Y' direction (no. 1 unit with double outlet);

No. 1 Grooving Saw Unit diameter 120 mm, RH rotation. Fixed working direction in 'X'

  • Extensions for loading and unloading tables.

1000 mm extension of the loading table by the machine infeed.

1000 mm extension of the unloading table by the machine outfeed.

The maximum workable panel length changes from 2600 to 3200 mm.

  • Manual laser QR code reader

Inclusive of:

Powered dock with NC connection for data receiving and QR code reader recharge functionality

QR code reader gun with wireless data connection to the dock



Specifications

ManufacturerBIESSE
ModelBrema EKO 2.1
Year2021
ConditionUsed
