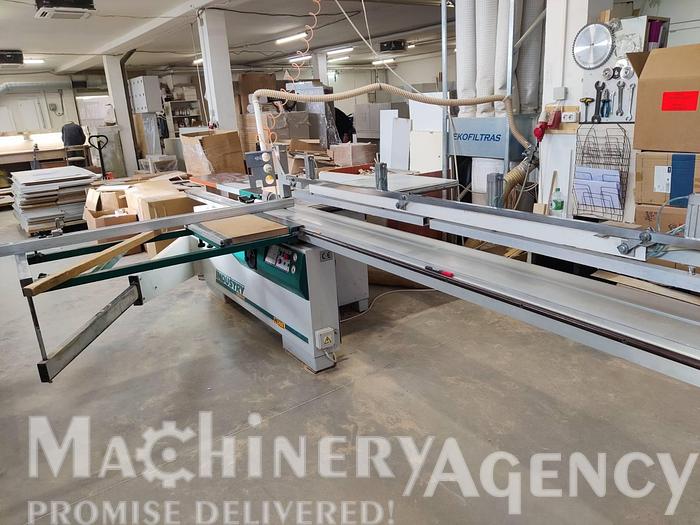

2008 ROJEK PF300 panel saw

2008 ROJEK PF300 panel saw

€4,000 EXW

orCall +370 650 27717

Description

TECHNICAL DATA

Motor power S6 40% 5,3 (7,5) kW/ 3×400 V (2,2 kW/1×230 V)

Motor speeds 2 870/min.(3 444/min.[60Hz])

Max. saw blade diameter with scoring unit Ø 315 mm

Spindle diameter 30 mm (1″)

Speed of main saw blade spindle 4 450/min. (3 500/5 000)

Max. depth of cut 100 mm (70 mm [45°])

Saw blade tilting 0° ÷ 45°

Max. width of cut 1 300 (1 500) mm

Scoring unit

Motor power of scoring unit 0,75 kW

Saw blade diameter Ø 120 mm (100 mm)

Spindle diameter Ø 20 mm (3/4″)

Speed 8 530/min.(10 236/min.[60Hz])

Machine dimensions

Length (with CV360T – 2 000 mm) 2 545 mm

Length (with CV360T – 2 800 mm) 3045 mm

Length (with CV360T – 3 200 mm) 3 355 mm

Width 3 350 (3 800) mm

Table height 892 mm

Max. height of machine 1 130 (1 460 | 1 700) mm

Table size 1 185 x 500 mm

Suction dust hood diameter 100 + 40 (60 | 100) mm

Gross weight 610 kg

Nett weight 605 kg

Alu sliding table CV360T

Table size 2 000 (2 800 | 3 200) x 360 mm

Dimensions of supporting frame 1 240 x 650 mm

Length of cut 2 000 (2 800 | 3 200) mm

Other parameters

Voltage / frequency 3×400 V (3×230 V) / 50(60)Hz

Line safeguarding 16 A (25 A)

Noise level (without technology) 81,8 dB(A)

Noise level (with technology) 85,3 dB(A)

Acustic achievement 98,6 dB(A)

Acustic achievement (with technology) 102,1 dB(A)



Specifications

ManufacturerROJEK
ModelPF300
Year2008
ConditionUsed
