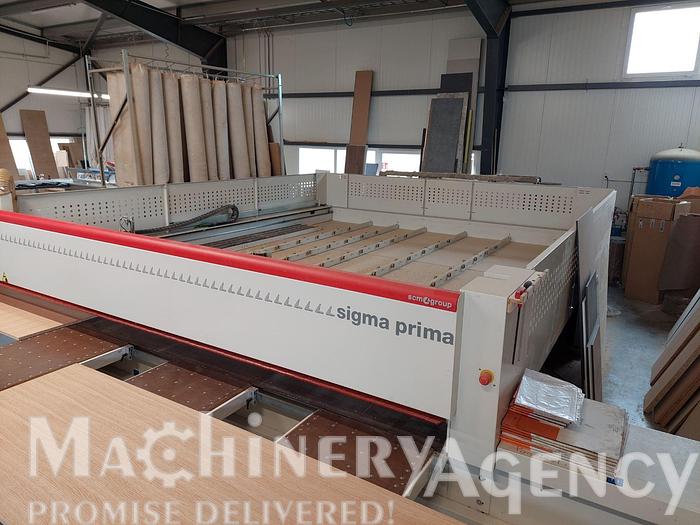

2017 SCM Sigma Prima 67 Panel Saw

2017 SCM Sigma Prima 67 Panel Saw

Contact us for price

orCall +370 650 27717

Description

Technical characteristic:

The maximum height of the saw above the table mm 67

The height of the work table is mm 950

Number of plate pushers-holders 5 pcs

The largest dimensions of the cutting board in mm. 3800x3200

Feed speed of the cutting unit m/min 6-30

The maximum feed speed of the workpiece to the cutting zone is m/min 24

The power of the main saw motor is kW 5.5

The rotation frequency of the main saw is 4600 rpm

Diameter of main saw D/d mm 320/80

The motor power of the cut-off saw is kW 1.1

The rotation frequency of the cut-off saw is 6300 rpm

Cut-off saw diameter D /d mm 160/55

Number of chip breaking holes pc 3

Diameters of chip breaking holes mm 2x120, 1x100

Visible in production, available in October, 2022

Specifications

ManufacturerSCM
ModelSigma Prima 67
Year2017
ConditionUsed
