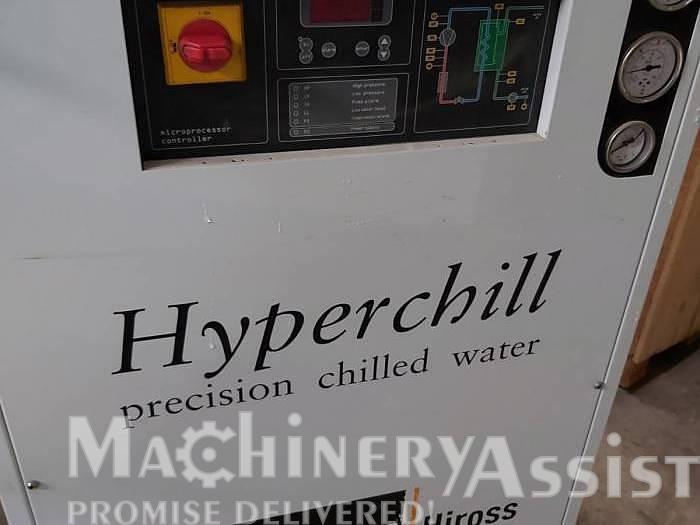

2010 Parker Hiross ICE039 Hyperchill

MIN./MAX. REFRIGER 1,5barg 28 barg 0,15 MPag 2,8 MPag

CIRCUIT DESIGN PRESS 21,8 psig 406 psl

MAX WATER 0,6 mpAG

PRESSURE 6 barg

87 psig

MAX WATER TEMP. 30°C 86°F

MIN AMBIENT 5°C 41°F

MAX AMBIENT 45°C 113°F

400V 3Ph 50 Hz 23.00A 13.00 kW

ELECTRICAL DIAGRAM No.BAA057UE0A01

OIL ICI EMKARATE RL32CF IP54

REFRIGERANT TYPE 407C

CIRCUIT CHARGE 8,6 KG - 604,01 OZ

WEIGHT 410 kg

DIMENSIONS/mm: 1650 x 744 x 1358

CONDITION: good working condition.
