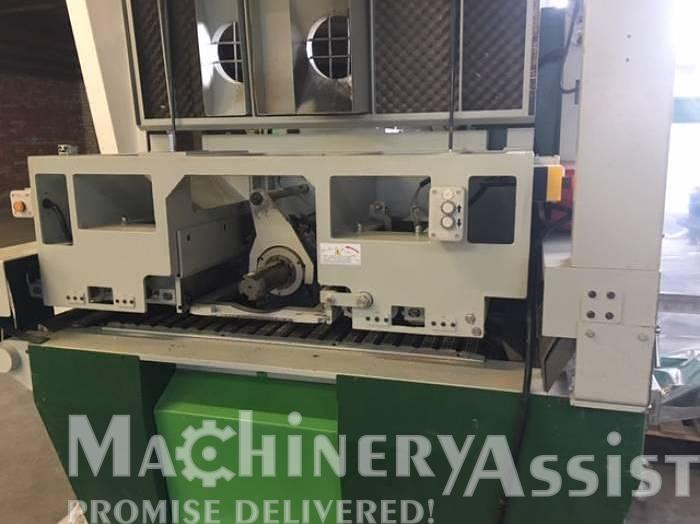

MRS-340M Movable RIP SAW KUANG YUNG

MRS-340M Movable RIP SAW KUANG YUNG

Contact us for price

orCall +370 650 27717

Description

SPECIFICATION Model MRS-340M

Max. cutting thickness (standard)

(using ∅14” saw blade) 110 mm

(using ∅12” saw blade) 85 mm

Max. cutting thickness (with short stock cutting device)

(using ∅12” saw blade) 50 mm

Max. cutting width 340 mm (13.4“)

Max. material width 650 mm (25.6“)

Min. material length (standard) 550 mm (22“)

Min. material length (with short stock cutting device) 400 mm (15.8“)

Max. saw blade diameter ∅355 mm (14“)

Min. saw blade diameter ∅305 mm (12”)

Saw blade bore ∅70 mm

Saw arbor diameter ∅70mm

Saw arbor speed 3800 rpm (50,60 HP)

Saw arbor motor 50 HP (60 HP)

Feed motor 3 HP

Variable feed speed 5-40 M/min.

Dust hood Dia. ∅200 mm (8“) x 2 / ∅100 mm (4“) x 1

Table height from floor (H) 900 mm (35.5”)

Table area 1525×595 mm

Overall dimensions (L×W×H) 2240×1480×1750 mm

Net weight 2100 Kgs.

Specifications

ManufacturerKUANG YUNG MACHINERY
ModelMRS-340M Movable RIP
ConditionUsed
Stock Number78524
Current stateDismantled
