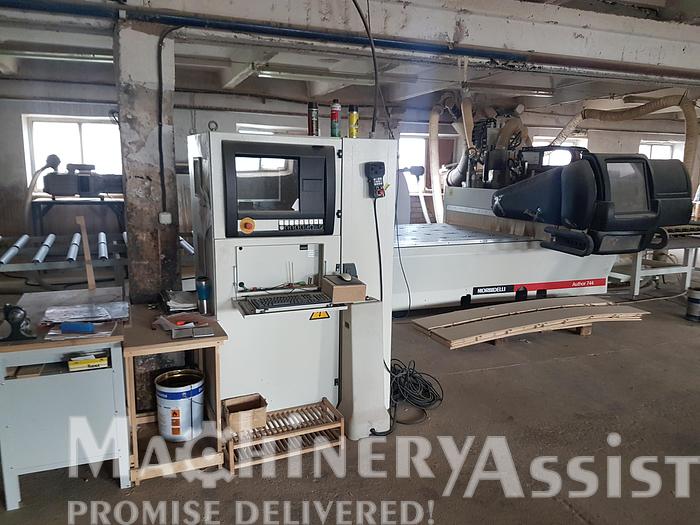

MORBIDELLI AUTHOR 744 CNC boring routing

CNC WORKING CENTRE FOR BORING ROUTING

GENERAL SPECIFICATIONS

► Industrial machine with heavy-duty structure

► Working area axes "X","Y" axes: 4400 mm - 1669 mm

► Stoke axes "X","Y": 4900 mm - 1800 mm

► Stoke axis "Z": 280 mm

► Travel speed axes "X","Y": 80 m/min - 40 m/min

► Linear speed axis "Z": 22,5 m/min

SUPPORTING AREA OF THE PANEL

► Working areas

► Flat work table with internal vacuum system to lock the suction cups where are placed the working pieces

► Work table dimensions 4422 mm x 1800 mm

► Nr. 1 vacuum pump 250 m3/h

BORING UNITS

► Nr. 1 boring units, each one with the following specifications

► Nr. 7 independent spindles for vertical boring in "X" direction

► Nr. 5 independent spindles for vertical boring in "Y" direction

► Nr. 4 spindles for horizontal boring in "X" direction

► Nr. 2 spindles for horizontal boring in "Y"direction

ROUTING UNITS

► Nr. 1 electro-spindle in vertical position - automatic change of the tool - "C" VECTOR AXIS that allows to turn and 360° angle drive heads with rotation regulation in automatic by numerical control  - motor power 10 HP - HSK 63 F ( 24000 RPM)

TOOL CHANGER MAGAZINE

► Tool changer magazine installed on machining head with nr. 10 positions

CONTROL OF THE MACHINE AND ACCESSORIES

► Control and program system XILOG PLUS with the following features: - pc - screen colour - CD-ROM reader - keyboard

► Control of axes "X" - "Y" - "Z" - "C" VECTOR

► Command board installed on a separated electrical cabinet to control the machine

► Separated electrical cabinet

NORM AND OPTIONAL FOR THE SECURITY

► Security norme CE mark

► Protection and sound-proof enclosure of the working units with safety sensors

► Protection grids installed on the machine

Available immediately, disconnected in warehouse.
